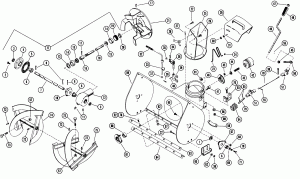

SNO-THRO
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 6436300 | Washer, Flat Steel 1.01 X 1.505 X .062 | ||
| 2 | 7049400 | Bolt-Serrated Hex Flange Washer Head .25-20 X .75 | ||
| 3 | 5606100 | Seal | ||
| 4 | 1018100 | Gear Case Flange | ||
| 5 | 1010800 | Gasket | ||
| 6 | 5503500 | Bushing | ||
| 7 | 1038400 | Front Gear Shaft | ||
| 7 | 1029900 | Front Gear Shaft | ||
| 8 | 5803000 | Roll Pin 3/16 X 1-1/2 | ||
| 9 | 5802200 | Roll Pin 5/16 X 1-3/8 | ||
| 10 | 51001400 | Shaft & Gear Service Assembly | ||
| 11 | 113800 | Pipe Plug | ||
| 12 | 1018000 | Gear Case | ||
| 13 | 5707500 | Rg-Rtng-Int 1.781 X .062 | ||
| 14 | 5404400 | Bearing Cup | ||
| 15 | 5404500 | Bearing Cone | ||
| 16 | 1010700 | Bearing Spacer | ||
| 17 | 5800700 | Roll Pin 1/4 X 1-1/4 | ||
| 18 | 51001400 | Shaft & Gear Service Assembly | ||
| 19 | 1037100 | Adjustment Plug | ||
| 20 | 5606200 | Seal | ||
| 21 | 1017800 | Fan | ||
| 22 | 6200004 | Bolt, Round Head Square Short Neck .38-16 X .75 | ||
| 23 | 1039300 | Safety Wire | ||
| 24 | 2212200 | Fastener | ||
| 25 | 52408500 | Chute Kit (Replace 24349) | ||
| 26 | 5959400 | Bolt, Hex .38-16 X .75 | ||
| 27 | 7406900 | Screw-Tapping 10-24 X .484 | ||
| 28 | 1019300 | Wing Nut | ||
| 29 | 52406100 | Chute Deflector W/Decal(82,93,311) | ||
| 30 | 6529600 | Nut, Locking Center .38-16 | ||
| 31 | 6306500 | Washer, Lock .375 X .115 Heavy | ||
| 32 | 7500400 | Grip 1/2 Id | ||
| 33 | 1039000 | Fork Cam | ||
| 34 | 5801700 | Roll Pin 5/16 X 1-1/4 | ||
| 35 | 303400 | Roller | ||
| 36 | 1018600 | Jaw Clutch | ||
| 37 | 1026000 | Spring | ||
| 38 | 6707100 | Pin-Cotter .12 X 1.0 | ||
| 39 | 100800 | Clutch Fork | ||
| 40 | 2470401 | Pin- Roll .188 Dia X 1.00 Long | ||
| 41 | 7028500 | Bolt, Serrated Hex Flange Washer Head .38-16 X .75 | ||
| 42 | 1017600 | Jaw Clutch | ||
| 43 | 8300010 | Spring, Compression .105 X 1.35 X 2.00 | ||
| 44 | 6441500 | Washer, Flat-Steel .755 X 1.375 X .062 | ||
| 45 | 6529700 | Nut, Locking Center .25-20 | ||
| 46 | 1014200 | Bearing Flange | ||
| 47 | 1019800 | Cap | ||
| 47 | 1019800 | Cap | ||
| 48 | 7503900 | Grip | ||
| 48 | 7503900 | Grip | ||
| 49 | 1048700 | Chute Control Crank(For 8 H.P. Only) | ||
| 49 | 1047800 | Chute Control Crank | ||
| 50 | 247500 | Eyebolt, Rod Hanger | ||
| 51 | 2470400 | Universal Joint | ||
| 51 | 2470400 | Universal Joint | ||
| 52 | 6215700 | Bolt, Round Head Square Neck .31-18 X .75 | ||
| 53 | 2212300 | Worm Clevis | ||
| 54 | 2211000 | Worm Gear | ||
| 55 | 5803400 | Roll Pin 1/8 X 3/4 | ||
| 55 | 5803400 | Roll Pin 1/8 X 3/4 | ||
| 56 | 6310600 | Washer-Lock .31 X .078 | ||
| 57 | 6529800 | Nut, Locking Center .31-18 | ||
| 57 | 6529800 | Nut, Locking Center .31-18 | ||
| 58 | 52409200 | Chute Clamp Kit | ||
| 57 | 6529800 | Nut, Locking Center .31-18 | ||
| 59 | 51001000 | Blower Housing 24In. | ||
| 59 | 51001100 | Blower Housing 32In. | ||
| 60 | 5406300 | Ball Bearing | ||
| 61 | 301700 | Bearing Flange | ||
| 62 | 6435700 | Washer, Flat Steel .380 X .875 X .83 | ||
| 62 | 6435700 | Washer, Flat Steel .380 X .875 X .83 | ||
| 63 | 1038700 | Scraper Blade | ||
| 63 | 1016459 | Scraper Blade 24In. | ||
| 64 | 1044600 | Reinforced Angle | ||
| 65 | 2483859 | Skid Shoe | ||
| 66 | 7028600 | Bolt-Serrated-Neck-Slotted .25-20 X .50 | ||
| 67 | 1018400 | Bearing Support | ||
| 68 | 6530100 | Nut, Locking Serrated Flange .25-20 | ||
| 69 | 6436400 | Washer, Flat, Steel .511 X 1.441 X .125 | ||
| 70 | 6306600 | Washer-Locking .500 X .125 | ||
| 71 | 5947100 | Bolt, Hex .50-13 X 1 | ||
| 72 | 1035400 | Zerk Fitting | ||
| 73 | 51001500 | Shear Bolt Service Assembly | ||
| 74 | 52412300 | Rake, Right Hand - 32In. (16In. O.D.) | ||
| 74 | 51000700 | R.H. Rake | ||
| 75 | 52412200 | Rake, Left Hand - 32In. (16In. O.D.) | ||
| 75 | 51000800 | L.H. Rake | ||
| 76 | 6215700 | Bolt, Round Head Square Neck .31-18 X .75 | ||
| 76 | 6215700 | Bolt, Round Head Square Neck .31-18 X .75 | ||
| 77 | 51000200 | 32In. Gear Case Assembly | ||
| 77 | 51003200 | Gear Case - C.I. | ||
| 78 | 1048800 | Connector Rod | ||
| 79 | 1049400 | Worm Shaft | ||
| 80 | 6529200 | Nut, 3/8-16 Std Hex Gr5 Y | ||
| 81 | 7002600 | Nut Retainer 3/8-16 | ||
| 82 | 52416300 | Decals- Replacement - Danger | (Not Shown) | |
| 83 | 7805500 | Clutch Instruction Label | (Not Shown) | |
| 84 | 7817400 | Ariens Nameplate | (Not Shown) |

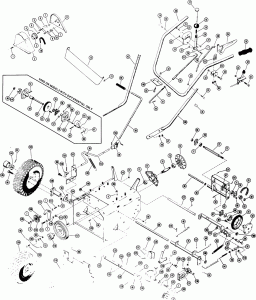

Tractor Parts
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 7001300 | Belt Cover Bolt | ||
| 2 | 51003300 | Belt Guard Assembly | ||
| 3 | 1023800 | Engine Sheave | (Used Only On Model(s): 910014,910006,910007,910008). | |
| 3 | 1047700 | Engine Sheave | (Used Only On Model(s): 910009,910021,910010,910016,910018). | |
| 4 | 6005500 | Scr-Set, 31-18 X .38 Skhcupdl Rev | ||
| 5 | 5947300 | Bolt, Hex .31-24 X .75 | ||
| 6 | 1016000 | R.H. Belt Finger | ||
| 7 | 6435700 | Washer, Flat Steel .380 X .875 X .83 | ||
| 8 | 6601300 | Key - Sae 1035 | (Used Only On Model(s): 910014,910006,910007,910008). | |
| 8 | 6601800 | Key | (Used Only On Model(s): 910009,910021,910010,910016,910018). | |
| 9 | 6307400 | Washer, Lock .312 X .097 | ||
| 10 | 7204700 | Belt | (Used Only On Model(s): 910014,910006,910007,910008). | |
| 10 | 7227600 | Belt-4L Raw Laminated | (Used Only On Model(s): 910009,910021,910010,910016,910018). | |
| 11 | 1015900 | Inner Belt Guard | ||
| 12 | 50203400 | Panel- Handlebar W/Decal-Ft524 | ||
| 13 | 1019600 | Handle Bar Washer | ||
| 14 | 5947400 | Bolt, Hex .25-20 X 1.25 | ||
| 15 | 6308000 | Washer, .250 Wide Heavy Flat Y | (Used Only On Model(s): 910014,910006,910009,910021,910016,910018). | |
| 15 | 6308000 | Washer, .250 Wide Heavy Flat Y | (Used Only On Model(s): 910007,910008,910010). | |
| 16 | 7500113 | Handle Grip | ||
| 17 | 1029300 | Shift Release Handle | ||
| 18 | 1024800 | Shift Ball | ||
| 19 | 8301500 | Clutch Lock Spring | ||
| 20 | 1023200 | Shift Handle | ||
| 21 | 5907200 | Cap Screw - 1/4-20 Unc X 1-1/4 H.H., H.T. | ||
| 22 | 6403700 | Washer - 9/32 I.D. X 1-1/4 O.D. X 1/16 Plated | ||
| 23 | 6529800 | Nut, Locking Center .31-18 | ||
| 24 | 1023100 | Shift Quadrant | ||
| 25 | 6436200 | Washer, .406 X .813 X X .065 Flat Y | ||
| 26 | 607100 | Spacer, Bushing .5 X .32 X .21 | ||
| 27 | 6529700 | Nut, Locking Center .25-20 | ||
| 28 | 5947000 | Bolt, 5/16-18 X .750 Hex 5 Y | ||
| 29 | 1046400 | Upper Handle Bar | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 29 | 1046300 | Upper Handle Bar | (Used Only On Model(s): 910014,910006,910016). | |
| 30 | 6711800 | @Pin-Ctr .12X.50 Extpsqct Ywzc | ||
| 31 | 5964700 | Bolt, Hex .25-20 X 1.75 | ||
| 32 | 6908500 | Throttle Control | (Used Only On Model(s): 910014,910006,910007,910008). | |
| 32 | 6908600 | Throttle Control | (Used Only On Model(s): 910009,910021,910010,910016,910018). | |
| 33 | 6529700 | Nut, Locking Center .25-20 | ||
| 34 | 53200700 | Traction Clutch Handle With De | ||
| 35 | 5952500 | Bolt, Hex .25-20 X 1.50 Grade 5 | ||
| 36 | 1046500 | Clutch Rod | ||
| 37 | 6537000 | Nut-Locking-Center .31-24 | ||
| 38 | 1024700 | Ball Joint | ||
| 39 | 1023500 | Upper Shift Rod | ||
| 40 | 1047200 | Clutch Link | ||
| 41 | 2424700 | Lower Shift Rod | ||
| 42 | 1015600 | R.H. Lower Handle Bar | (Used Only On Model(s): 910014,910006). | |
| 42 | 1015600 | R.H. Lower Handle Bar | (Used Only On Model(s): 910007,910008,910009,910021,910010,910016,910018). | |
| 43 | 6529500 | Nut, Hex .312-24 | ||
| 44 | 6706900 | Pin, Cotter External .09 X .75 | ||
| 45 | 6901200 | Cable Clamp | ||
| 46 | 6306500 | Washer, Lock .375 X .115 Heavy | ||
| 47 | 6529400 | Nut, 3/8 Unf Hex Grade 5 | ||
| 48 | 1036600 | Pushnut | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 49 | 2470400 | Universal Joint | ||
| 50 | 1037000 | R.H. Axle Shaft | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 51 | 5800300 | Roll Pin - 3/16 X 1-1/4 | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 52 | 6403600 | Washer - .880 I.D. X 1.3880 O.D. X .062 | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 53 | 51202000 | Differential Assembly | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 54 | 7028600 | Bolt-Serrated-Neck-Slotted .25-20 X .50 | ||
| 55 | 5503000 | Bushing | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 56 | 1202300 | Bearing Support | ||
| 57 | 6530100 | Nut, Locking Serrated Flange .25-20 | ||
| 58 | 1035400 | Zerk Fitting | (Used Only On Model(s): 910007,910008,910009,910021,910010,910016,910018). | |
| 59 | 51003000 | L.H. Axle Assembly | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 60 | 5502900 | Bushing | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 61 | 8300700 | Spring | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 62 | 1037400 | Pin | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 63 | 5803700 | Roll Pin - 1/4 X 1-3/4 | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 64 | 1037200 | Lockout Hub | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 65 | 7864400 | Decal, Differential Lock (926042, 324) | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 66 | 5803200 | Roll Pin - 3/32 X 1 | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 67 | 1037500 | Knob | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018). | |
| 68 | 6530000 | Nut-Locking-Center .50-20 | ||
| 69 | 6504100 | Locknut - #10-24 Plated | ||
| 70 | 2414100 | Bearing Flange | ||
| 71 | 5408000 | Ball Bearing | ||
| 72 | 1027500 | Hex Shaft | ||
| 73 | 6601500 | Key - Woodruff #5 | ||
| 74 | 1054600 | Drive Plate | ||
| 75 | 5406300 | Ball Bearing | ||
| 76 | 1020400 | Spindle | ||
| 77 | 1026700 | Bearing Housing | ||
| 78 | 6509000 | Twin Whizlock Nut | ||
| 79 | 1047000 | Front Clutch Lever | ||
| 80 | 1047100 | Rod | ||
| 81 | 1023700 | Chain | ||
| 82 | 1027600 | Sprocket | ||
| 83 | 1047300 | Disc Bracket | ||
| 84 | 1046900 | Adjustment | ||
| 85 | 6403800 | Shim Washer - .505 I.D. X .880 O.D. X 24 Ga. | ||
| 86 | 1021200 | Bracket Pin | ||
| 87 | 308500 | Bearing Flange | ||
| 88 | 5704300 | Snap Ring | ||
| 89 | 5408300 | Bearing | ||
| 90 | 7000900 | Flange Whizlock Screw - 5/16-18 X 1/2 Plated | ||
| 91 | 4743700 | Disc- Friction | ||
| 92 | 1218300 | Friction Disc Hub | (Used Only On Model(s): 910014,910006,910016). | |
| 93 | 6712600 | Cotter Pin 1/8 X 1-1/4 | ||
| 93 | 6712600 | Cotter Pin 1/8 X 1-1/4 | ||
| 94 | 8308900 | Spring | Used Only On Model(s): 910009,910021,910010,910016,910018). | |
| 95 | 6533200 | Nut, Hex .25-20 (926513) | ||
| 96 | 7416900 | Screw, Tapping .50-20 X .62 Hex Head (118, 122, 332, 505, 506, 507, 508, 551) | ||
| 97 | 1016100 | L.H. Belt Finger | ||
| 98 | 1048200 | Clutch Handle | ||
| 99 | 7501300 | Grip | (Used Only On Model(s): 910014,910006,910016). | |
| 100 | 1028300 | Wheel Hub | (Used Only On Model(s): 910009,910021,910010,910016,910018). | |
| 101 | 1049200 | Belt Finger | (Used Only On Model(s): 910009,910021,910010,910016,910018). | |
| 102 | 6435800 | Washer, Flat Steel, .312 X .734 X .065 | ||
| 103 | 8300400 | Spring | ||
| 104 | 5503900 | Flange Bushing | ||
| 105 | 6529200 | Nut, 3/8-16 Std Hex Gr5 Y | ||
| 106 | 1036000 | Bearing Spacer | ||
| 107 | 1047900 | Clutch Bracket | ||
| 108 | 1208600 | Cap | (Used Only On Model(s): 910014,910006). | |
| 109 | 1015700 | L.H. Lower Handle Bar | (Used Only On Model(s): 910007,910008,910009,910021,910010,910016,910018). | |
| 109 | 1015700 | L.H. Lower Handle Bar | ||
| 110 | 52007000 | Idler Kit | ||
| 111 | 5947500 | Bolt, Hex .31-18 X 1.25 Grade 5 | ||
| 112 | 1038900 | Idler Arm | ||
| 113 | 5957400 | Bolt, Hex .31-18 X 1.75 Grade 5 | ||
| 114 | 1036100 | Shoulder Spacer | ||
| 115 | 6436700 | Wshr-Fl-Stl .323X.625X.062 Ywzc | ||
| 116 | 1020600 | Jaw Coupling | ||
| 117 | 1023900 | Driven Sheave | ||
| 118 | 1046000 | Bottom Cover | ||
| 119 | 6706900 | Pin, Cotter External .09 X .75 | ||
| 120 | 5959400 | Bolt, Hex .38-16 X .75 | ||
| 121 | 6701900 | Hair Pin Cotter | ||
| 122 | 1046700 | Fork Shaft | (Used Only On Model(s): 910009,910021,910010,910016,910018). | |
| 123 | 5946800 | Blt-Hex .25-20X.75 Gr5 Ywzc | ||
| 124 | 6436600 | Washer, Flat-Steel .505 X .880 X .072 | ||
| 125 | 3105100 | Pin, Clevis | ||
| 126 | 1021500 | Lever Bracket | ||
| 127 | 1047600 | Transfer Lever | ||
| 128 | 1048400 | Connecting Link | ||
| 129 | 4110300 | Ball Joint | ||
| 130 | 5504000 | Bushing | ||
| 131 | 1046100 | Sliding Fork | (Used Only On Model(s): 910014,910006,910016). | |
| 132 | 6403300 | Washer - .755 I.D. X 1.375 O.D. X .125 Plated | (Used Only On Model(s): 910014,910006,910016). | |
| 133 | 6601100 | Key | (Used Only On Model(s): 910014,910006,910016). | |
| 134 | 6601200 | Key - Woodruff #91 | (Used Only On Model(s): 910014,910006,910016). | |
| 135 | 2470401 | Pin- Roll .188 Dia X 1.00 Long | (Used Only On Model(s): 910014,910006,910016). | |
| 136 | 1027900 | Axle Shaft | ||
| 137 | 5960600 | Bolt, Hex .31-18 X 2.75 | ||
| 138 | 1046200 | Support Bracket | (Used Only On Model(s): 910014,910006,910016). | |
| 139 | 1021100 | Spur Gear | ||
| 140 | 1020800 | Pinion Stub Shaft | ||
| 141 | 5500111 | Bushing, Flange | ||
| 142 | 52400200 | Pinion And Sprocket | (Used Only On Model(s): 910014,910006,910007,910008). | |
| 143 | 1045800 | Tractor Frame | (Used Only On Model(s): 910009,910021,910010,910016,910018). | |
| 143 | 1045900 | Tractor Frame | (Used Only On Model(s): 910014,910006,910007,910008). | |
| 144 | 1238200 | Spindle Cup | (Used Only On Model(s): 910009,910021,910010,910016,910018). | |
| 144 | 1238200 | Spindle Cup | (Used Only On Model(s): 910014,910006,910016). | |
| 145 | 337700 | Hub Cap | (Used Only On Model(s): 910007,910008,910009,910021,910010,910018) | |
| 145 | 337700 | Hub Cap | ||
| 146 | 1046600 | Rear Clutch Lever | ||
| 147 | 1046800 | Pivot Spacer | ||
| 148 | 6403800 | Washer .505 I.D. X .880 O.D. X 24 Ga. | ||
| 149 | 1048300 | Rod Hanger Bracket | ||
| 150 | 1048100 | Clutch Interlock Lever | ||
| 151 | 2207300 | Handle Pivot | ||
| 152 | 7411800 | Screw-Tapping 12-14 X 1.50 | ||
| 153 | 1048000 | Engagement Rod | ||
| 154 | 5803400 | Roll Pin | (Used Only On Model(s): 910014,910006,910007,910008,910016,910018). | |
| 155 | 7116500 | Tire And Wheel Assembly Consisting Of:(12M4) | (Used Only On Model(s): 910014,910006,910007,910008,910016,910018). | |
| 155 | 7104600 | Tire | (Used Only On Model(s): 910014,910006,910007,910008,910016,910018). | |
| 155 | 7105000 | Tube | (Used Only On Model(s): 910014,910006,910007,910008,910016,910018). | |
| 155 | 7103800 | Rim | (Used Only On Model(s): 910009,910021,910010). | |
| 156 | 7117200 | T/Whl Assy | (Used Only On Model(s): 910009,910021,910010). | |
| 156 | 7102800 | Tire-Turf Saver 13 X 5.00-6 | (Used Only On Model(s): 910009,910021,910010). | |
| 156 | 7105000 | Tube | (Used Only On Model(s): 910009,910021,910010). | |
| 156 | 7103800 | Rim | ||
| 157 | 6707100 | Pin-Cotter .12 X 1.0 | ||
| 158 | 6701000 | Hair Pin Cotter | ||
| 159 | 6 H.P. Engine(Tecumseh Hsk-60 75361J) Orreplacement | |||
| 160 | 7 H.P. Engine(Tecumseh Hsk-70 130067A) Orreplacement | |||
| 161 | 8 Hp Eng.(Tecumseh Hsk-80 155020) Or Replac. | (Not Shown) | (Used Only On Model(s): 910014,910006,910007,910008). | ||
| 162 | 1037300 | Carburetor Cover | (Not Shown) | |
| 163 | 7801000 | Helicon Patent Label | (Not Shown) | (Used Only On Model(s): 910009,910021,910010,910016,910018). | |
| 164 | 7818900 | Air Cleaner Decal | (Not Shown) | |
| 165 | 7801600 | Sno Shift Label | (Not Shown) | |
| 166 | 7823100 | Engine Label | (Not Shown) | (Used Only On Model(s): 910009,910010,910016,910018). | |
| 167 | 7819100 | Engine Decal - 8 H.P. | (Used Only On Model(s): 910014,910007,910008). | |
| 168 | 7863700 | Decal-7 Hp | (Not Shown) | |
| 169 | 7823000 | Label - In-Out | (Not Shown) | (Used Only On Model(s): 910006). | |
| 170 | 7822500 | Engine Decal - 6 H.P. | (Not Shown) | |
| 171 | 7504000 | Plug |
